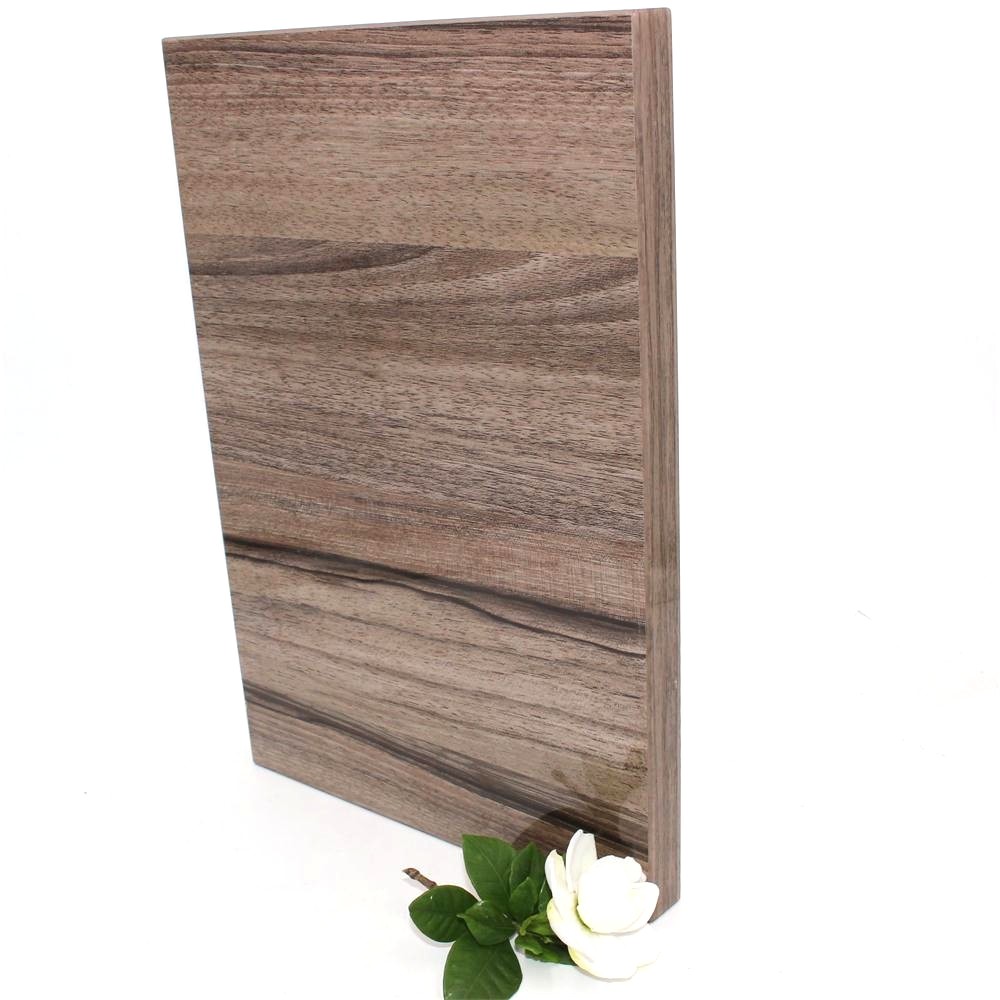

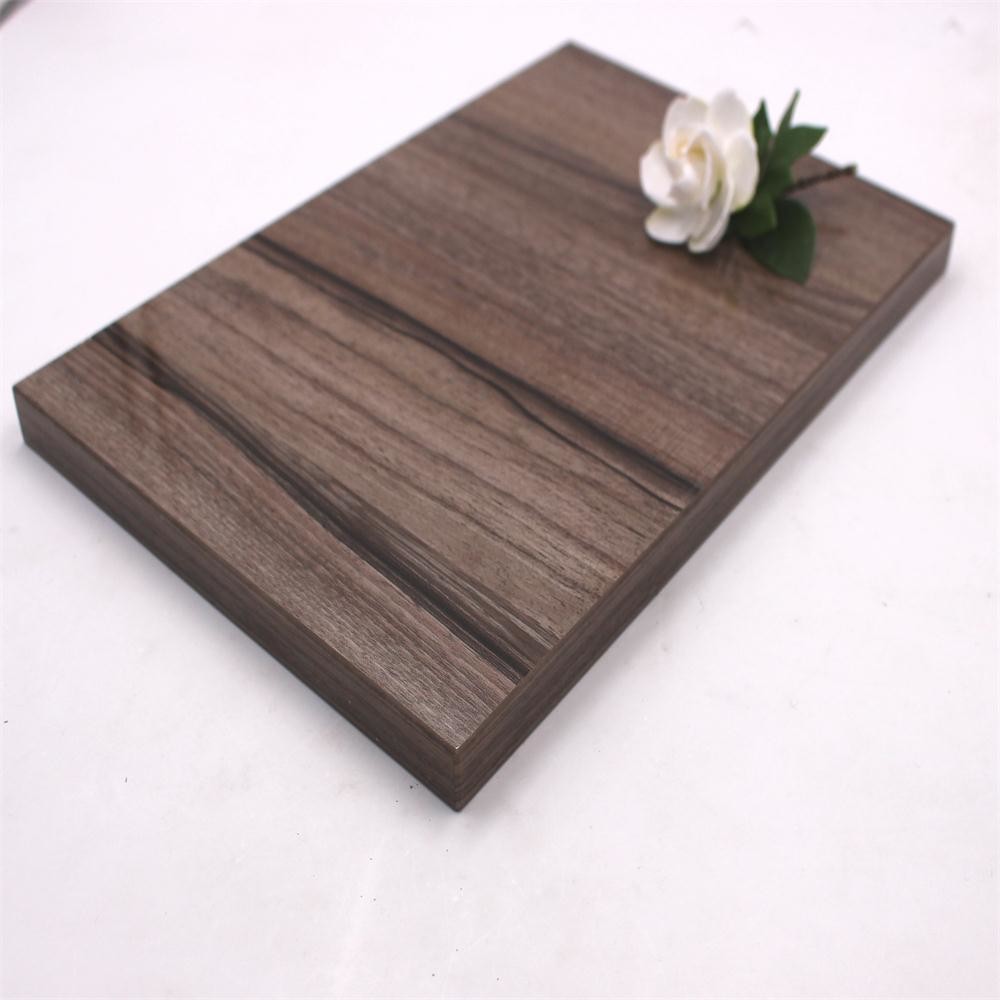

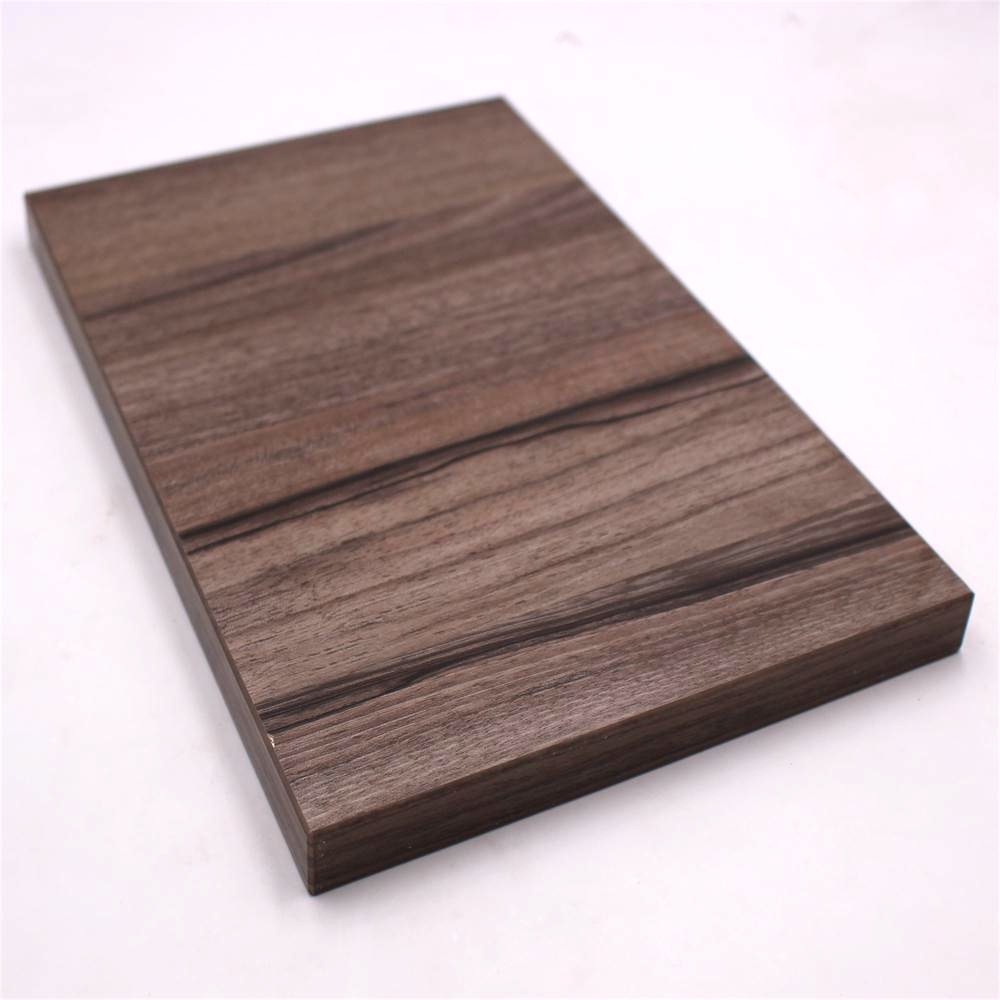

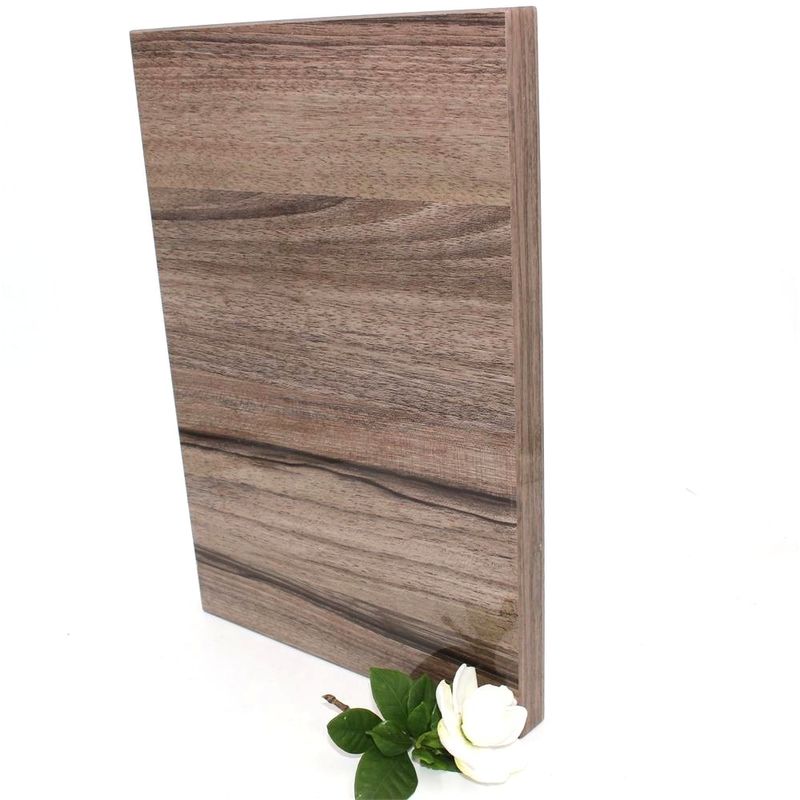

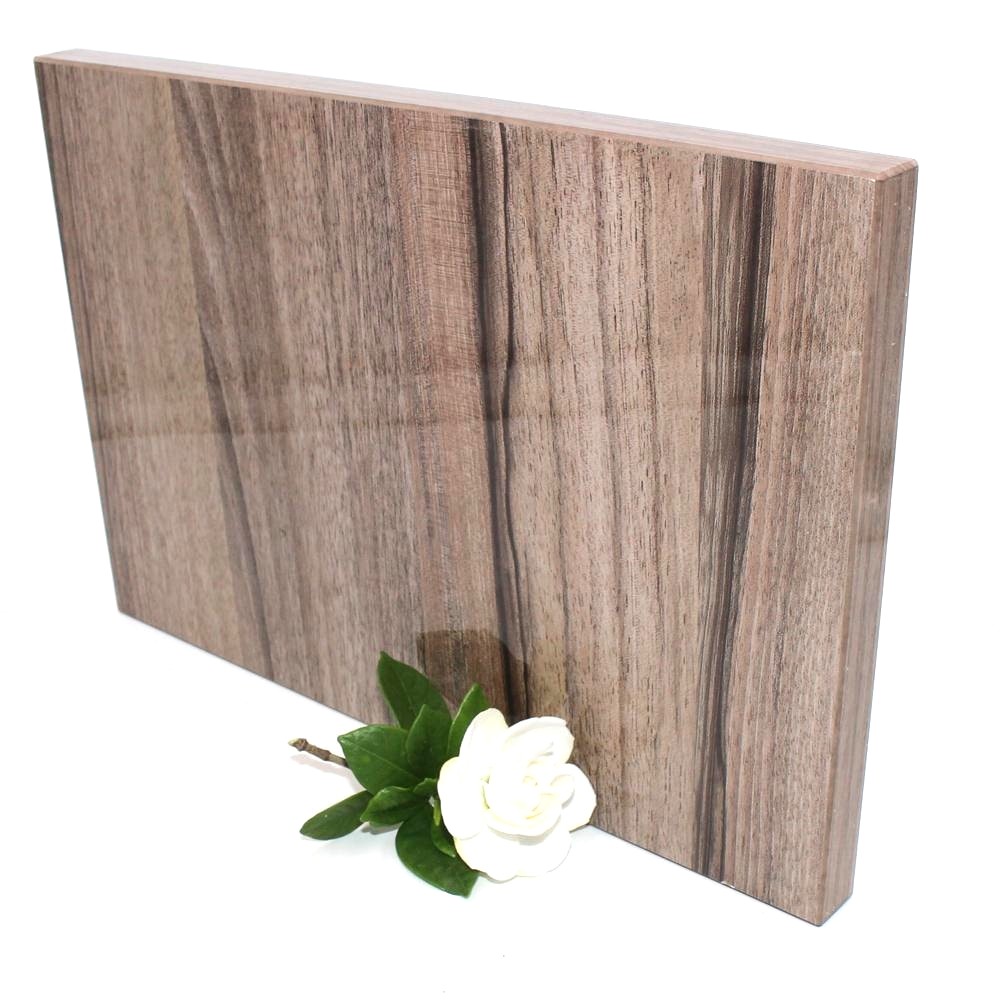

Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm

Product Details:
Place of Origin: China
Brand Name: SETTING
Certification: ISO9001 ,ECO-LABEL,ECO-LABEL , CARB
Model Number: Z0103HC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: standard export packing
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 70000m2 /month

Detail Information

Color: Gloss Wood Grain Surface: 0.5mm LG Hausys PET Film
Core: E0 MR MDF Back: Matching Melamine Paper Or PET Sheet
Glue: PUR Hot Melt Adhesive Size: 1220x2440,1220x2800,1220x3050mm
Thickness: 5-30mm Application: Kitchen Cabinet , Wardrobe , Wall Decoration
Product: Gloss Wood Grain PET MDF Board
High Light:

15mm Gloss MDF Panels


Wood Pattern Gloss MDF Panels


PET high Gloss MDF Panels 15mm

Product Description

Mirror effect high Gloss wood grain PET surface mdf boards for kitchen and wardrobe


SETTING 'S PET PANELS offers excentllent value and consistent quality in high-gloss and supper matte components .The high gloss surface is created by using the highest quality imported PET film (highest tempature and uv resistance )applied over a melamine board .

Lower quality PET 's can yellow over time ,But SETTING'S PET use both uv resistant coating and uv resistance adhesive to ensure the color doesn't change over time.


Flatness & no delamination :Processing though non-dust -pressing plant with high quality material and imported PUR-HOT -MELT adhesive * Eco-friendly :PET is food packing material which is no toxic gas released .

Scratch-resistance :The surface with uv coating , hardness level is 2H

Anti-yellowing :The surface with special treatment ,no color fading ,anti-yellowing

No color difference from different batch ►E <0.5

Quality stable ,Oil & Corrosion resistamce


Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 0


The Technical Date Sheet of Setting's  Mirror effect Wood grain  LG Hausys PET laminated mdf panels


No. Test Item Standard Test Parameters Result
1 mositure content (24H) 5.0%-11.0% 0.082 Qualified
2 Water absorption expansion rate <=7.0% 0.053 Qualified
3 Internal bonding strength >=0.45Mpa 0.59Mpa Qualified
4 modulus of rupture >=20.0Mpa 30MP Qualified
5 Stain resistance and Chmical resistance no stain and non corrsive no stain and non corrsive Qualified
6 surface bonding strength >=0.9Mpa 1.2Mpa Qualified
7 surface resistance to cigarette burns crack , black spot,bubbling are not allowed no crack , black spot and bubbling Qualified
8 Elasticity modulus >=2000Mpa 2954Mpa Qualified
9 Nail -holding power Top of board >=900N 1293N Qualified
Edge of board >=600N 956N Qualified
10 Sureface resistance to temperature difference No crack ,no bubbing No crack ,no bubbing Qualified


Certification of PET Sheet we using


Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 1


The core of mirror effect  wood grain PET lamianted panels we using


Beside of high quality mdf board, we using plywood , particle board ,osb ,blockboard and pvc foam board as well .

Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 2



Application .


Seting's Gloss PET coated MDF panels are used for all millwork projects such as:
kitchen cabinets
bathroom vanity cabinets
office cabinets
custom closets
modern display units
furniture, store fixtures
interior wall panels

Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 3


Packing of gloss wood grain PET sheet laminated mdf panels


Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 4

Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 5

Uv Coating PET Wood Pattern High Gloss MDF Panels 15mm 6





Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?

Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them
